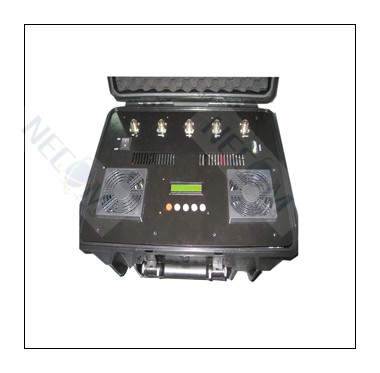

Model :Portable WideBand Bomb Jammer

Product Overview:

Portable High-Power Jammer CPJ-8020  Multi band jammer can be constructed to jam up to six frequency bands, and the overall RF output power is above 100Watts.A “Smart active” cooling system enables unlimited continuous use The system has a fully protected circuit in case of disconnection of antennas.The jammer is designed for easy installation and use. Simply attach selected antennas and operate from the jammers external UPS batteries, or Plug into either AC mains or DC power source and start to operate

APPLICATIONS
* Homeland Security
* Correctional Centers
* Petrochemical Industry
* Sports Venues and Theaters
* VIP Convoy Protection
* Bomb Prevention/Disposal
* Schools and Universities
* Government and Military
* Power Generating Plants

Features:

*.5 modules are controlled separately and also can work simultaneously, Each band is adjustable.
*. Each module with antenna can be used as a single jammer.
*. The pelican case is portable (can be carried like a suitcase).
*. Can be mounted on the car directly or any other temporary occasion.
*. Frequency band is optional.(20-2500Mhz)
*. With excellent heat dispersion. Fans to keep the heat dispersed
Specification

Communication Standards:
CDMA-L        450-470MHZ  (20  Watts )(Optional)
CDMA-H        850-894MHz  ( 20 Watts )
GSM-900       925-960MHz  ( 20 Watts )
GSM-1800     1805-1880MHz ( 20 Watts )
GSM-1900     1930-1990MHz ( 20 Watts )
3G  BAND     2110-2170MHz ( 20 Watts )
Total RF Output Power :100Watts+.
Power Adjustment:Each band can be controlled separately and simultaneously.Output power adjustable
Power Consumption:About 300WVA
External Power Supply Voltage:+24(+22…+29.6)VDC/230VAC /110VAC
External battery capacity:1-2hours.(Depended on configuration)
Continuously between charges
Housing:Waterproof and shockproof mil style “Pelican” trolley case
Device Color:Green or Black Optional
Size:60x49x36cm
weight:34KG
Humidity:Up to 80%
Operation temperatures:-20 ...+50 Centigrade degree
Antennas type:6pcs of External high gain omni-directional antennas (7-8dBi)Or 3pcs of external high gain directional antennas   (12-15dBi)Or 2-3dbi short omni antennas can be put in a small antennas pack.
