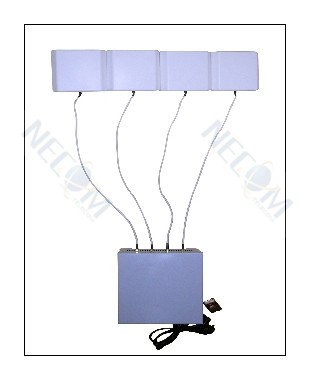

Model :Directional Cellphone Jammer

Product Overview:

Mobile Communication Jammer System
GSM/CDMA/DCS/ 3G….(other Bands Optional)
Medium Power Total Output Power is 25W
Remotely Controlled
Model: CPJ4015

The CPJ4015 has been designed for blocking GSM, CDMA, DCS, UMTS/3G networks and all kinds of cellular standards in the world,The CPJ4015 is using state of –art technology for maximum performance
The unit controlled by microprocessor for PLL programming The CPJ4015 transmits noise signal which cut off all cellular communication between mobile phone and cellular cells,the effective blocking range is up to 50-100 meter. Jamming radius depends on the strength signal in given area. All cellular mobile in vicinity of CPJ4015 will be totally BLOCKED and will not be able to receive or dial outgoing calls,When CPJ4015 effect the mobile the display will show “NO SERVICE”
It is fits  the  appropriate commercial or institutional application.
APPLICATIONS
*Prison and Restricted area*Conference rooms*Exam rooms*Church, temple, mosque*Theaters*Concert Hall*Cinemas* Homeland Security * Correctional Centers   * Petrochemical Industry
* Sports Venues and Theaters  * VIP Convoy Protection * Bomb Prevention/Disposal * Schools and Universities * Government and Military  * Power Generating Plants* Movie theaters, hospitals, Religious Places, churches
*university, schools, classrooms, libraries
*police forces and military, Government,
* Inside jails. Prisons
* Homeland Security
* Correctional Centers
* Petrochemical Industry
* Sports Venues and Theaters
* VIP Convoy Protection
* Bomb Prevention/Disposal



Features:



RF Characteristics

Total Output Power
 25W
Internal Modulation
FM Hopping Frequency
Signal Source
PLL Synthesized
Power Supply
AC220V±10% 45-55Hz
Modules Per Unit
4 Bands(GSM/CDMA/DCS/PCS/3G)
Remote Control
Standard
Antennas
External
7dBi Gain Directional Panel or Omini-Directional
Jamming Frequency Bands
Up to 4 Bands of the following for one case
Frequency Bands
851/896-894MHz
925/935-960MHz
1805-1880MHz
1930-1990MHz
2110-2170MHz
Air Interface Standards
Digital:IDEN,TDMA,CDMA,GSM,UMTS
Analog:AMPS,MNT,N-AMPS,TACS
Physical Data

Dimensions
140mmx215mmx285mm
Weight
7KG not included Antennas
Environment of operation

Operating Temp
20℃-+65℃
Humidity
5%-80%
