Model :Repeater 3G(UMTS) 2100Mhz
Product Overview:

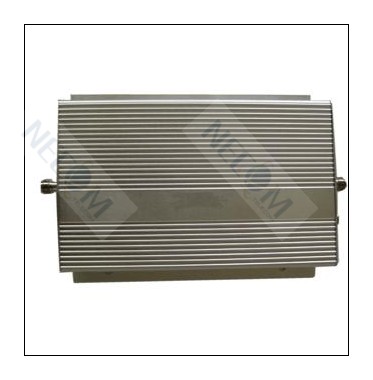

Mini High Power Repeater 3G/WCDMA2100-TE-2130B
MINI Sets-WCDMA2100Mhz Repeater 3G2100-TE-2130B Works in all countries and covers 3G-UMTS networks is intended to strengthen the signal in the 3G2100 mobile buildings.Ideal for use in areas where the 3G2100 signal is weak to cause Call dropout or Cant connection .The device improves the voice calls and data VOICE GPRS and EDGE(dependsof the signal operator)
Download
Product Data Sheet
Features:
*High system gains.
*Full duplex and double-end design, external power supply, and convenient installation.
*ALC technology with auto-steady function adopted.
*Provide power indication and uplink and downlink indications.
*With the amplified linear power, the intermodulation an spuriousness are suppressed effectively.
*The reliability conforms to GB6993-86 standards.
*The electromagnetic compatibility conforms to ETS300 609-4 standards.
|
Model No.
|
TE-2130B/33/35B
|
|
|
Frequency
|
Uplink
|
1920 -1980 MHz
|
|
Downlink
|
2110-2170 MHz
|
|
|
Gain
|
Uplink
|
80dB
|
|
Downlink
|
85dB
|
|
|
Output power
|
Downlink: 30/33/35dBm
|
|
|
Pass band ripple
|
≤4dB
|
|
|
Guard band rejection
|
（BW-60dB）≤42MHz ,（BW-70dB）≤45MHz
|
|
|
I/O impedance
|
50Ω/N Connector
|
|
|
I/O return loss
|
≤-10dB
|
|
|
Noise figure
|
≤-8dB
|
|
|
Intermodulationattenuation (Po=13dBm)
|
(Po=13dBm) ≤-40dBc
|
|
|
Transmission Delay
|
≤0.5μs
|
|
|
Ambient temperature
|
-10℃～50℃
|
|
|
Power supply
|
AC110～240V±10% 45～55Hz
|
|
|
Dimension
|
210mm×170mm×50mm
|
|
|
Weight
|
3kg
|
|
|
Reliability
|
the GB6993-86 standard
|
|
|
Electromagnetic compatibility
|
the ETS300 694-4 standard
|
|
|
Indicators:
a) DC Power LED Indicator
b) RF Power LED Indicators
|
||
Order Information
Pico-Repeater WCDMA2100 TE-2135B :Output power 35dBm/Gain 85dB Cover area 3000-5000m2
Pico-Repeater WCDMA2100 TE-2133B :Output power 33dBm/Gain 85dB Cover area 2000-3000m2
Pico-Repeater WCDMA2100 TE-2130:Outputpower 30dBm /Gain 80dB Cover area 1500-2000m2
=======
Enquiry now :sales@necom-telecom.com
