PRODUCTS LIST

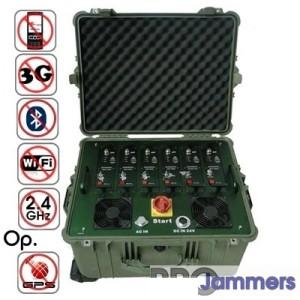

Model :Multi-Band Pelican Portable Jammer
Product Overview:
VIP High Power Jammer VIP-Jammer1.0 Multi band jammer can be constructed to jam up to six frequency bands, and the overall RF output power is above 360Watts.A “Smart active” cooling system enables unlimited continuous use The system has a fully protected circuit in case of disconnection of antennas.The jammer is designed for easy installation and use. Simply attach selected antennas and operate from the jammers external UPS batteries, or Plug into either AC mains or DC power source and start to operate
APPLICATIONS
* Homeland Security
* Correctional Centers
* Petrochemical Industry
* Sports Venues and Theaters
* VIP Convoy Protection
* Bomb Prevention/Disposal
* Schools and Universities
* Government and Military
* Power Generating Plants
Features:
*.6modules are controlled separately and also can work simultaneously, Each band is adjustable.
*. Each module with antenna can be used as a single jammer.
*. The pelican case is portable (can be carried like a suitcase).
*. Can be mounted on the car directly or any other temporary occasion.
*. Frequency band is optional.(20-2500Mhz)
*. With excellent heat dispersion. Fans to keep the heat dispersed
Specification
Communication StandardS:
CDMA-L 450-470MHZ (70 Watts )
CDMA-H 850-894MHz ( 70 Watts )
GSM-900 925-960MHz ( 70 Watts )
GSM-1800 1805-1880MHz ( 60 Watts )
GSM-1900 1930-1990MHz ( 60 Watts )
3G BAND 2110-2170MHz ( 60 Watts )
Total RF Output Power :360Watts.
Power Adjustment:Each band can be controlled separately and simultaneously.Output power adjustable
Power Consumption:About 2000VA
External Power Supply Voltage:+24(+22…+29.6)VDC/230VAC /110VAC
External battery capacity:1-2hours.(Depended on configuration)
Continuously between charges
Housing:Waterproof and shockproof mil style “Pelican” trolley case
Device Color:Green or Black Optional
Size:60x49x36cm
weight:34KG
Humidity:Up to 80%
Operation temperatures:-20 ...+50 Centigrade degree
Antennas type:6pcs of External high gain omni-directional antennas (7-8dBi)Or 3pcs of external high gain directional antennas (12-15dBi)Or 2-3dbi short omni antennas can be put in a small antennas pack.
