Model :Pelica Bomb JAMMERS

Product Overview:

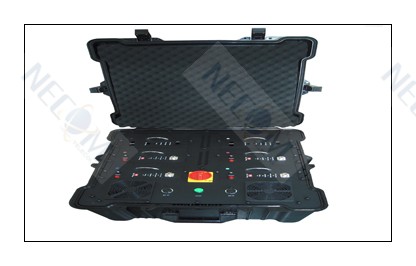

 Police /Military /VIP Convoy Pelica Bomb JAMMERS System Model:CPJ-8040

The Model CPJ8040 Is very highpower mobilephone VHF UHF And Wideband Immobilizing focused on the special military or goverment requirements .the output power is Max 400W+ .the effective blocking range can be up to 500meters the jammer is housed in a 19 rack mount by  pelican case with standalone modular design.


* High power jammer designed for blocking remote controlled improvised explosive devices used by terrorist.
*Using state-of-art technology for maximum performance and jamming the signals transmits to activate bombs.
*Jamming radius depends on several conditions such as transmitter frequency and output power, distance to receiver, and obstacles between, etc.
* The system use Broadband Omni-Directional antennas for 360º protection.
* Because of the variety of jamming targets and a wide range of uncertainties, we have adopted the more advanced and effective jamming signal modulation method, which will increase the jamming efficiency in each band, so that to provide security protection and ensure the safety of VVIPs.


*Jamming range 200-500Meter

*Tx frequency 100-2500Mhz

*Jams simultaneously up to 5 selected frequency bands


*Patch antenna :12dbi each band

*RF Cable:RG214/5m

*Indicating of LCD display of each band RF outpower&frequency

*Adjustable RF Poweroutput levels for each band independently

*input power :AC90-260V/50-60HZ DC-24-28V/30A

*VSWR Over protection with antenna ERR LED

*output failure alarming

*light in weight of case the weight of device up to 65KG+ not including antennas Easy to carry

*Dimensions(19rack mount )-9u


*police forces and military, Government,
* Inside jails. Prisons
* Homeland Security
* Correctional Centers
* Petrochemical Industry
* Sports Venues and Theaters
* VIP Convoy Protection
* Bomb Prevention/Disposal



Any further question ,enquiry us by



Police /Military /VIP Convoy JAMMERS System Model:CPJ-8040 The Model Works in all countries and covers GSM800/850/1800/1900/3G-UMTS /VHF/UHF/450Mhz /GPSL1/L2 networks (Tx Frequency:851/869-894MHz,925/936-965MHz,1805-1990MHz,2110-2170MHz F:2400-2500Mhz(optional) G:GPSL1/GPSL2(optional) )

(We offer Customize Frequency Jammer)
